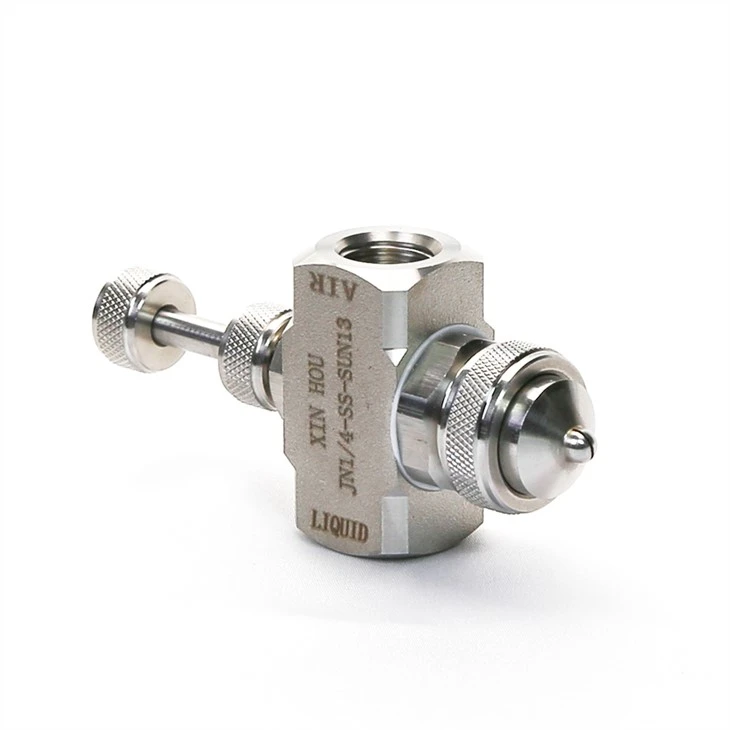

Vlastnosti
● Nastaviteľné tlakové rozprašovacie trysky s plochým ventilátorom vytvárajú jemne rozprášený sprej, hmlu alebo hmlu
● Pracovný tlak vzduchu aj kvapaliny je zvyčajne 2 -3 bar.
● Nastaviteľný prietok umožňuje rôzne voľby kapacít
● Nastaviteľné tlakové rozprašovacie trysky s plochým ventilátorom poskytujú nezávislé ovládanie kvapaliny, rozprašovacieho vzduchu a tlaku vzduchu ventilátora na jemné doladenie prietoku, veľkosti kvapiek, rozprašovania a pokrytia.
Všeobecná aplikácia
1) Poťahovanie, chladenie, zvlhčovanie
2) Chladenie plynom
3) Mazanie, zvlhčovanie
4) Zahmlievanie, zahmlievanie
5) Potláčanie prachu
Popis
Model | JN |
Typ | Nastaviteľné |
Striekací vzor | Plochý ventilátor |
Pracovný spôsob | Tlak |
Zmiešať | Interné |
Parameter
Nastavenie spreja | Tekutý uzáver / Vzduchový uzáver č. | Kapacita kvapaliny (L/h)& Kapacita vzduchu (l/min) | Striekacia vzdialenosť | ||||||||||
1,5 bar (kvapalina) | 2 bar (kvapalina) | 3 bar (kvapalina) | Tlak vzduchu (bar) | Tlak kvapaliny (bar) | D（m) | ||||||||
Tlak vzduchu (bar) | Kapacita vody | Kapacita vzduchu | Tlak vzduchu (bar) | Kapacita vody | Kapacita vzduchu | Tlak vzduchu (bar) | Kapacita vody | Kapacita vzduchu | |||||
SU13A | Tekutý uzáver 2050 / | 1.3 | 9.1 | 31 | 2.0 | 8.6 | 42 | 2.7 | 11.2 | 52 | 1.1 | 0.7 | 2.6 |
1.5 | 7.7 | 36 | 2.2 | 7.5 | 47 | 3.0 | 10.1 | 56 | 2.1 | 1.5 | 3.0 | ||
1.8 | 6.5 | 42 | 2.5 | 6.2 | 52 | 3.2 | 9.1 | 62 | 2.8 | 2.0 | 3.2 | ||
2.1 | 5.4 | 47 | 2.8 | 5.2 | 57 | 3.5 | 8.1 | 66 | 3.5 | 3.0 | 3.4 | ||
2.4 | 4.3 | 52 | 3.1 | 4.2 | 63 | 4.2 | 5.4 | 79 | 6.0 | 4.0 | 4.0 | ||
2.7 | 3.3 | 57 | 3.2 | 3.7 | 65 | 4.6 | 4.2 | 85 | - | - | - | ||
2.8 | 2.8 | 60 | 3.4 | 3.2 | 68 | 4.9 | 3.1 | 91 | - | - | - | ||
SU13 | Tekutý uzáver 2850 / | 1.4 | 14.4 | 27 | 2.1 | 13.5 | 36 | 2.7 | 19.1 | 42 | 1.1 | 0.7 | 2.1 |
1.7 | 11.9 | 32 | 24 | 11.4 | 42 | 3.0 | 17.1 | 46 | 2.1 | 1.5 | 2.4 | ||
2.0 | 9.5 | 37 | 2.7 | 9.2 | 47 | 3.2 | 15.1 | 52 | 3.0 | 2.0 | 2.6 | ||
2.1 | 8.3 | 40 | 3.0 | 7.1 | 53 | 3.5 | 13.1 | 57 | 3.5 | 3.0 | 2.7 | ||
2.2 | 7.1 | 43 | 3.2 | 5.0 | 59 | 4.2 | 8.1 | 72 | 5.6 | 4.0 | 3.2 | ||
2.4 | 6.1 | 46 | 3.4 | 4.0 | 63 | 4.6 | 5.9 | 79 | - | - | - | ||
2.5 | 5.1 | 49 | 3.5 | 3.3 | 66 | 4.9 | 4.0 | 86 | - | - | - | ||
NE13 | Tekutý uzáver 2850 / Vzduchový uzáver 7335 | 2.0 | 10.4 | 41 | 2.4 | 11.6 | 48 | 3.1 | 15.6 | 56 | 1.4 | 0.7 | 3.0 |
2.1 | 9.3 | 45 | 2.5 | 10.4 | 51 | 3.2 | 14.6 | 59 | 2.5 | 1.5 | 3.7 | ||
2.2 | 8.2 | 48 | 2.7 | 9.4 | 54 | 3.4 | 13.7 | 62 | 3.2 | 2.0 | 4.0 | ||
2.5 | 6.1 | 55 | 3.0 | 7.3 | 61 | 3.8 | 10.8 | 71 | 3.8 | 3.0 | 4.2 | ||
2.8 | 4.3 | 62 | 3.2 | 5.5 | 68 | 4.2 | 8.5 | 82 | 5.3 | 4.0 | 4.8 | ||
3.1 | 3.0 | 69 | 3.5 | 4.1 | 75 | 4.9 | 5.2 | 98 | - | - | - | ||
3.4 | 2.0 | 75 | 3.8 | 2.9 | 81 | 6.0 | 2.3 | 120 | - | - | - | ||
SU14 | Tekutý uzáver 2850 / | 2.1 | 7.4 | 40 | 3.0 | 6.1 | 52 | 3.9 | 9.4 | 60 | 1.5 | 0.7 | 1.8 |
2.4 | 5.3 | 45 | 3.1 | 5.3 | 54 | 4.2 | 7.2 | 67 | 2.7 | 1.5 | 2.0 | ||
2.5 | 4.4 | 47 | 3.2 | 4.5 | 57 | 4.6 | 5.3 | 73 | 3.2 | 2.0 | 2.0 | ||
2.7 | 3.7 | 50 | 3.4 | 3.8 | 59 | 4.9 | 3.8 | 80 | 4.2 | 3.0 | 2.1 | ||
2.8 | 3.1 | 52 | 3.5 | 3.2 | 62 | - | - | - | 5.6 | 4.0 | 2.3 | ||
3.0 | 2.6 | 55 | 3.9 | 1.8 | 68 | - | - | - | - | - | - | ||
3.1 | 2.1 | 57 | - | - | - | - | - | - | - | - | - | ||
NE23 | Tekutý uzáver 60100 | 2.0 | 24 | 44 | 2.4 | 28 | 51 | 3.4 | 38 | 72 | 1.1 | 0.7 | 2.4 |
2.1 | 18.9 | 50 | 2.5 | 23 | 59 | 3.5 | 33 | 80 | 2.1 | 1.5 | 3.0 | ||
2.2 | 14.4 | 56 | 2.7 | 18.3 | 66 | 3.7 | 28 | 89 | 2.8 | 2.0 | 3.4 | ||
2.4 | 10.6 | 63 | 2.8 | 15.1 | 74 | 3.8 | 23 | 97 | 3.7 | 3.0 | 3.6 | ||
2.5 | 7.2 | 71 | 3.0 | 11.7 | 79 | 3.9 | 19.7 | 105 | 4.9 | 4.0 | 4.0 | ||
- | - | - | - | - | - | 4.2 | 13.1 | 120 | - | - | - | ||
- | - | - | - | - | - | 4.6 | 7.2 | 138 | - | - | - | ||
SUN23B | Tekutý uzáver 40400 / | 2.1 | 18.0 | 79 | 2.7 | 19.6 | 93 | 3.5 | 27 | 112 | 1.4 | 0.7 | 3.0 |
2.2 | 15.8 | 84 | 2.8 | 17.3 | 98 | 3.7 | 25 | 116 | 2.4 | 1.5 | 3.2 | ||
2.4 | 13.6 | 89 | 3.0 | 15.2 | 103 | 3.8 | 23 | 121 | 3.0 | 2.0 | 3.4 | ||
2.5 | 11.6 | 95 | 3.1 | 13.2 | 109 | 3.9 | 21 | 126 | 3.7 | 3.0 | 3.5 | ||
- | - | - | 3.2 | 11.4 | 114 | 4.1 | 18.9 | 132 | 5.3 | 4.0 | 4.0 | ||
- | - | - | - | - | - | 4.2 | 17.0 | 137 | - | - | - | ||
- | - | - | - | - | - | - | - | - | - | - | - | ||
SU23 | Uzáver Liqudi 60100 | 1.8 | 38 | 55 | 2.4 | 39 | 67 | 3.2 | 58 | 76 | 1.1 | 0.7 | 3.4 |
2.1 | 28 | 66 | 2.7 | 30 | 77 | 3.5 | 47 | 87 | 2.4 | 1.5 | 3.5 | ||
2.2 | 24 | 71 | 3.0 | 24 | 87 | 3.8 | 38 | 97 | 3.2 | 2.0 | 3.7 | ||
2.4 | 21 | 76 | 3.2 | 17.8 | 98 | 3.9 | 34 | 103 | 3.9 | 3.0 | 3.8 | ||
2.5 | 17.8 | 82 | 3.4 | 15.1 | 103 | 4.2 | 27 | 113 | 6.0 | 4.0 | 4.4 | ||
2.7 | 15.1 | 87 | 3.5 | 12.9 | 109 | 4.6 | 20 | 126 | - | - | - | ||
- | - | - | 3.7 | 10.6 | 114 | 4.9 | 14.8 | 140 | - | - | - | ||
SU43 | Tekutý uzáver 100150 | 1.8 | 56 | 117 | 2.1 | 100 | 119 | 3.0 | 126 | 140 | 1.0 | 0.7 | 3.4 |
2.0 | 40 | 133 | 2.2 | 79 | 133 | 3.1 | 110 | 151 | 1.8 | 1.5 | 3.8 | ||
- | - | - | 2.4 | 62 | 147 | 3.2 | 95 | 163 | 2.4 | 2.0 | 4.3 | ||
- | - | - | 2.5 | 48 | 162 | 3.4 | 78 | 184 | 3.4 | 3.0 | 4.6 | ||
- | - | - | 2.7 | 36 | 177 | 3.5 | 62 | 193 | 4.9 | 4.0 | 5.2 | ||
- | - | - | - | - | - | 3.7 | 48 | 210 | - | - | - | ||
- | - | - | - | - | - | 3.8 | 37 | 225 | - | - | - | ||
Informácie o objednávke
JN | 1/4’’ | SS | SU13A | SS |
↓ | ↓ | ↓ | ↓ | ↓ |
Typ trysky | Veľkosť vlákna | Kód materiálu vzduchového uzáveru | Striekacie zariadenie č. | Kód materiálu uzáveru kvapaliny |
Obrázky aplikácie
Kontrola prachu
